Product features
1: Using aluminum profiles for integrated molding and extrusion, with surface oxidation treatment, cover die casting, and surface anti-corrosion spray coating treatment;
2: Imported high-purity aluminum reflectors provide excellent optical performance;
3: 5mm tempered glass, high temperature and impact resistant;
4: High strength foam solid silicone sealing ring, with high dustproof and waterproof rating
5: Compared with the traditional plastic case three proof lamp, it has high luminous yield, impact resistance, aging resistance and long service life
6: We offer traditional hanging chain and fixed installation, as well as snap on and adjustable angle installation (the lamp can be adjusted between 0-90 degrees).
7: Adjustable installation spacing for easy installation
8: Tempered glass has a high light output rate and can be hung on the lamp housing, making installation and maintenance more convenient
9: Good heat dissipation ensures stable output power and prolongs the lifespan of the lighting fixtures
1: Using aluminum profiles for integrated molding and extrusion, with surface oxidation treatment, cover die casting, and surface anti-corrosion spray coating treatment;
2: Imported high-purity aluminum reflectors provide excellent optical performance;
3: 5mm tempered glass, high temperature and impact resistant;
4: High strength foam solid silicone sealing ring, with high dustproof and waterproof rating
5: Compared with the traditional plastic case three proof lamp, it has high luminous yield, impact resistance, aging resistance and long service life
6: We offer traditional hanging chain and fixed installation, as well as snap on and adjustable angle installation (the lamp can be adjusted between 0-90 degrees).
7: Adjustable installation spacing for easy installation
8: Tempered glass has a high light output rate and can be hung on the lamp housing, making installation and maintenance more convenient
9: Good heat dissipation ensures stable output power and prolongs the lifespan of the lighting fixtures
Advantage
*High protection level, IP66,IK08, Flame retardant V2,
*Anti corrosion grade: WF2
*Explosion proof grade: ExdIICT6GB/DIP A20.T6 80 ℃
*Certification: Can pass CE ROHS ETL CB and other standards
*Can carry battery emergency for 91 minutes
*The glass is equipped with a protective buckle, which will not easily fall off during installation
*The number of buttons can be increased or moved freely
*The aluminum material of the product is pickled and sprayed with plastic, which will not rust
*Exquisite appearance craftsmanship, firm and solid, high grade
*Installation methods include: ceiling mounted, suspension rod mounted, hanging chain mounted, wall mounted, and adjustable angle
*High protection level, IP66,IK08, Flame retardant V2,
*Anti corrosion grade: WF2
*Explosion proof grade: ExdIICT6GB/DIP A20.T6 80 ℃
*Certification: Can pass CE ROHS ETL CB and other standards
*Can carry battery emergency for 91 minutes
*The glass is equipped with a protective buckle, which will not easily fall off during installation
*The number of buttons can be increased or moved freely
*The aluminum material of the product is pickled and sprayed with plastic, which will not rust
*Exquisite appearance craftsmanship, firm and solid, high grade
*Installation methods include: ceiling mounted, suspension rod mounted, hanging chain mounted, wall mounted, and adjustable angle
Benefits
*Capable of being used competently in some harsh environments
*Stainless steel buttons can be freely added to ensure IP66 protection

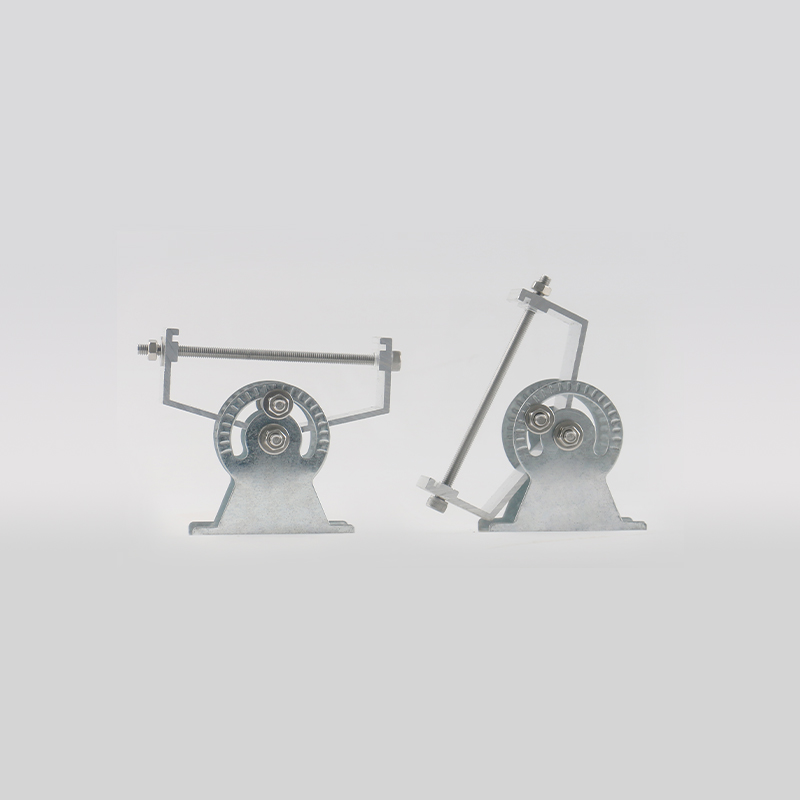

*Equipped with a rotating bracket, the angle can be easily adjusted after installation, making it easy to install
*The lamp tube installation is convenient for maintenance and replacement, with low maintenance costs
*Capable of being used competently in some harsh environments
*Stainless steel buttons can be freely added to ensure IP66 protection
*Equipped with a rotating bracket, the angle can be easily adjusted after installation, making it easy to install
*The lamp tube installation is convenient for maintenance and replacement, with low maintenance costs

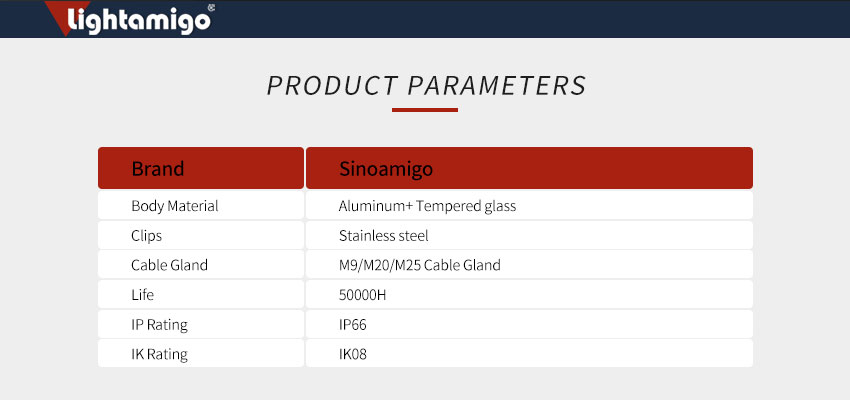

Product parameters：
| Model | Dimension | Power | Holder | Number of LED | Clips |
| SW01118 | 670x90x90 | 1x18W T8 | G13 | 1 Tube | 4 |
| SW01218 | 670x125x90 | 2x18W T8 | G13 | 2 Tube | 8 |
| SW01136 | 1270x90x90 | 1x36W T8 | G13 | 1 Tube | 10 |
| SW01236 | 1270x125x90 | 2x36W T8 | G13 | 2 Tube | 4 |
| SW01158 | 1570x90x90 | 1x58W T8 | G13 | 1 Tube | 8 |
| SW01258 | 1570x125x90 | 2x58W T8 | G13 | 2 Tube | 10 |
